Product Description

The IOT0510 Environmental Security Monitoring System was originally designed and privately labeled for LOOP for Data Centers, IT Rooms and Confidential Lab operators but later enhanced for more unattended locations such as:

• Data centers/IT rooms/Network infrastructure
• Industrial centers and manufacturing facility
• Military camps
• Agriculture and storage
• Public buildings and facilities like government buildings, transportation stations, vehicle parking and etc.

To help operators meet the demands for environmental and physical security, energy conservation, and remote management for the next decade via cloud.

The IOT0510 System has the following functions and features:

1. • Simple and easy-to-use user interface. With a simple training session, users can operate the entire system through its cloud-based GUI either locally or remotely, with a secured communication link or via Internet.
   • 3D virtual graphical heat map, dashboards and histograms showing temperature and humidity heat map of every rack.
   • Dashboards and histograms showing airflow speed, power consumption, rack access, IT assets and other mission critical profile.
   • Computer room air conditioning(CRAC), analysis, data center’s Power Utilization Efficiency (PUE), AC load percentage, rack load percentage, airflow index and cooling index (overheat or overcool).
   • Air quality (i.e., PM1.0, PM2.5, PM10, etc.) and airborne particles from 0.3um to 10um provides indication of the clean-ness or dust-ness of cooling air and when air system clean might be needed.
   • Monitored data and alarms in real time in table and graphic formats.
   • Historic data and alarms in table and graphic formats.
   • Historic data and alarm search, export and print in table or Excel format.
   • Data export to back up storage devices for compliance audits, integrated AI performance analytics and improvement, customized dashboards, network uptime and reports.
   • User-defined warning threshold for every monitoring parameter.

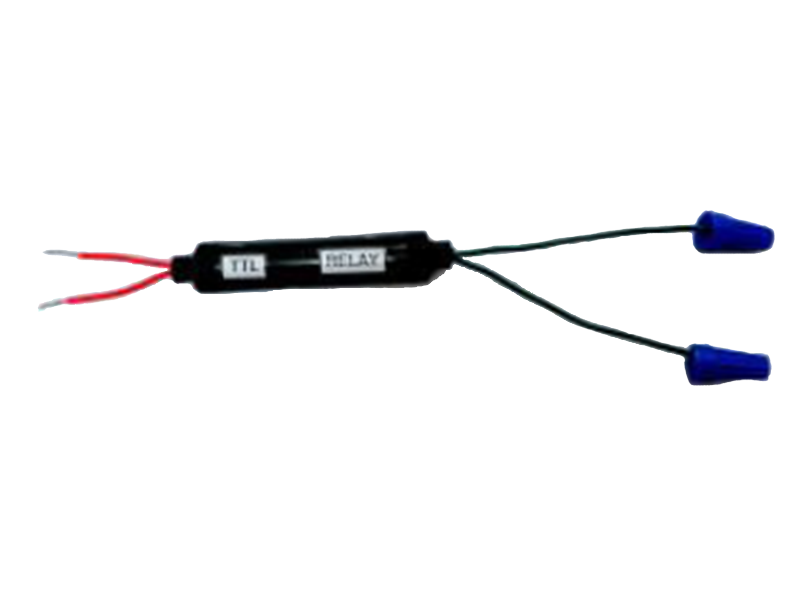

   • Warning signals can be set to trigger any of the IO ports to control audible alarms, auto dialers and any 3^rd party devices via dry relays. Warning notifications can be sent to mobile devices via email and/or text messages from unmanned data centers.
   • Automatic and semi-automatic CRAC^NOTE2 group control for energy savings.
   • Web-based system for multi-user and multi-location access via public or private cloud service.
   • Per rack-based assets management for assets tracking, search and inventory.
   • Cloud configurable IO ports can be configured as input or output, analog or digital for 3^rd party device interface and integration.
   • User accounts and privileges.
