Product Description

Loop-O9150Sa is an economical, cost-effective SDH STM-1 Mux designed to combine digital access interfaces including TDM and interfaces into STM-1 optical lines for convenient transport and switching. Through STM-1 uplink, O9150Sa provides VC-12 standard E1s and Ethernet supporting GFP, VCAT, LCAS and Non-LCAS protocol.

The O9150Sa is a comprehensive SDH STM-1 multiplexer platform for traditional telecom businesses and broadband information business applications, and a blending trend which adapts Metropolitan Area Network as well as audio and information business in all Private Networks.

The O9150Sa provides two aggregate STM-1 interfaces which offer the service provider a versatile protection scheme including SNCP and MSP (1+1) protection for both ring and linear network topology.

• Mechanical and Electrical

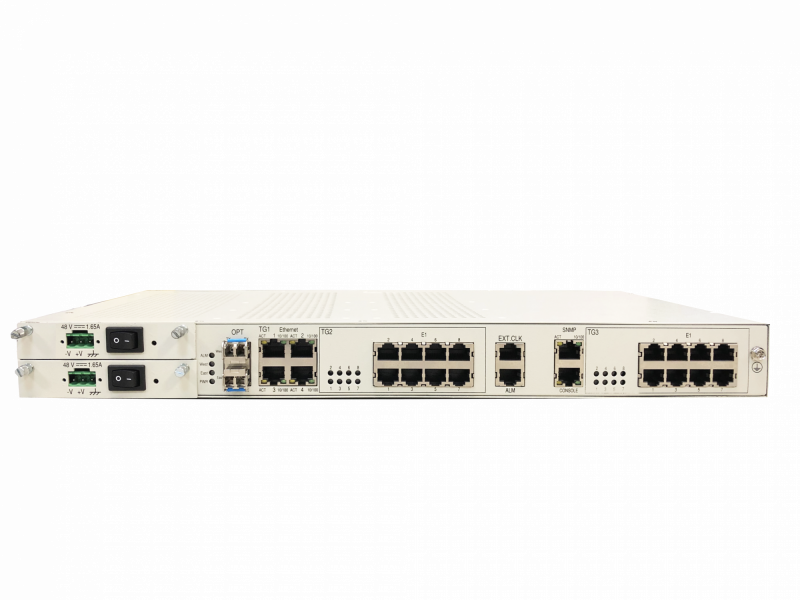

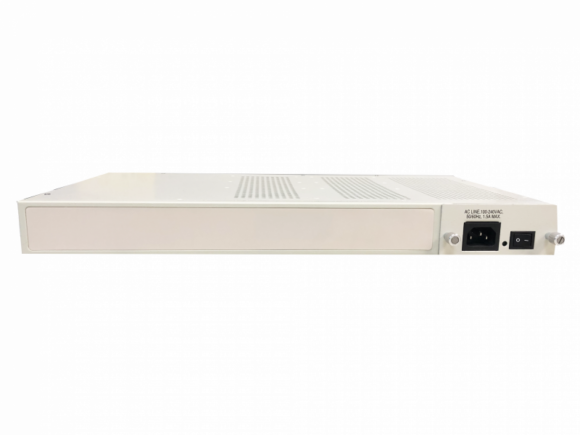

  • 1U height ETSI/ANSI shelf unit (front/rear access)
  • Standalone, and rack mount
  • SDH STM-1 TM /ADM Mux
• Aggregate Port
  • 2 STM-1 with SFP optical housing
• On-board tributaries on TG1/TG2 slot
  • TG1: up to 2/4 FE
  • TG2: up to 8 E1
• Optional modules on TG3/TG4*/TG5* slot
  • TG3: 8 E1
  • TG4/TG5(Manufacture option)*
    • 16-port E1*
    • 4-port GE SW*
• Ethernet
  • Supports GFP, VCAT, LCAS, Non-LCAS
• Network Protection
  • SNCP and MSP (1+1) protection
• Timing
  • Support External/Internal/Line/E1 clock
• Power Supply
  • Two hot swappable DC plug-in modules(-48 Vdc) for redundancy
  • Two hot swappable AC plug-in modules(100 to 240 Vac) for redundancy
• 3Performance Monitoring
  • 1 hour, 24 hours, and 7 days
  • Alarm suppression, masking, and reporting
• Management
  • Console port
  • SNMP v1
  • Centralized management with Loop’s  EMS over DCC channel
  • Through E1
  • Loop-iNET Intelligent Network Management System
  • Telnet support

*Future Option
