Product Description

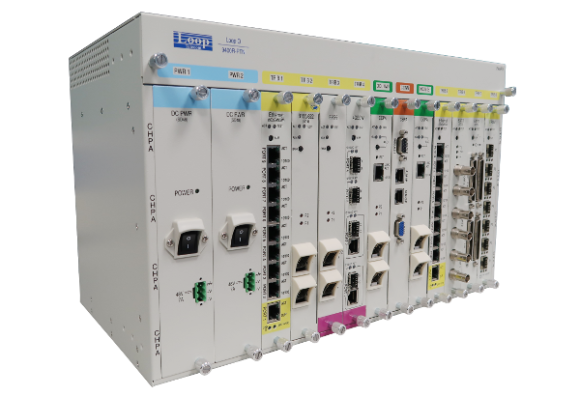

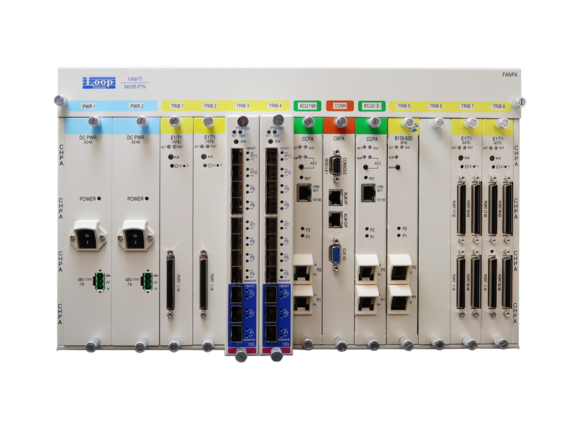

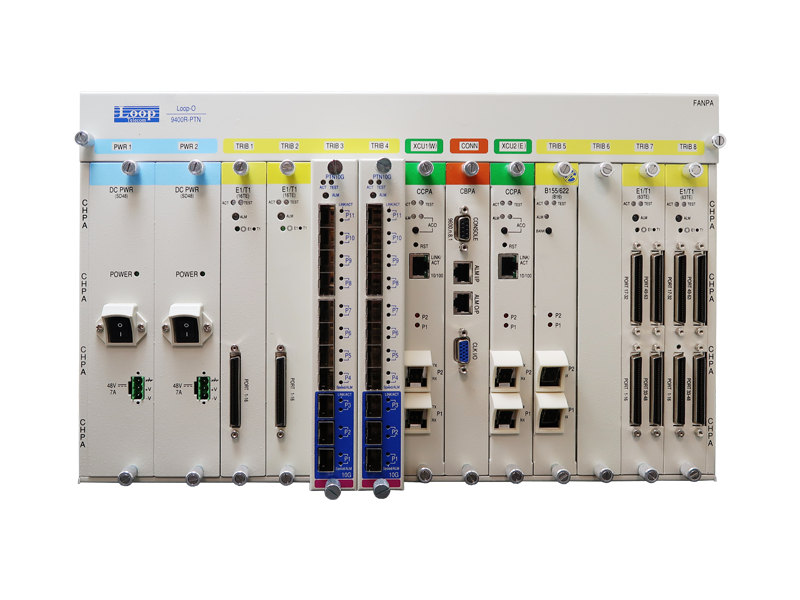

The Loop-O9400R is a standards-compliant high density SDH/SONET/PTN ADM/TM IMAP with a full T1/E1 cross-connect rack system.

The O9400R has full add and drop capability according to the figures below:

• 1 STM-16 tributaries
• 4 STM-4 tributaries
• 16 STM-1 tributaries
• 24 E3/T3 tributaries
• 504 E1/T1 tributaries
• 64 10/100M Ethernet EoS tributaries
• 8 GbE EoS tributaries
• 56 FOM tributaries
• 6 10GbE and 16 1GbE tributaries

With up to 4 STM-1/4/16 (OC-3/12/48) aggregate interfaces on cross-connect modules and 16 STM-1 (OC-3) interfaces on tributaries, the Loop-O9400R offers the service provider a versatile protection scheme including SNCP (UPSR), and MSP (1+1) protection for network topology.

With the PTN10G interface card, the O9400R will be able to transport SDH/SONET over PSN network. With O9400R as a gateway between SDH/SONET and PTN, existing SDH/SONET network users will be able to migrate from SDH/SONET/PDH to PTN network smoothly and seamlessly.

All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The Loop-O9400R provides powerful Operation, Administration, Maintenance and Provisioning (OAM&P) functionality, including fault management, performance monitoring, configuration management, and network security management. Through a console port, LAN port and DCC channel, OAM&P can be achieved both locally and remotely via SNMP or menu-driven interfaces.

The Loop-O9400R provides a complete set of operation interfaces that are consistent with the Telecommunication Management Network (TMN) concept (ITU Recommendation M.30, G.784) for SDH/SONET Network Element/Operations System (NE/OS), NE/NE, and NE/Craft communications. Users can easily operate the Loop-O9400R locally or remotely for centralized management.

Features

• 6U height, full front access (ETSI) shelf support up to 2.5G Mbps backplane
• SDH/SONET VCn/VTn Cross-Connect Capacity: 15Gbps bidirectional non-blocking
• PTN (CE and MPLS-TP) Switching Capacity: 100Gbps bidirectional non-blocking
• Hot-swappable cross-connect modules, tributary modules and power modules
• Temperature-controlled fan tray
• Aggregate cross-connect modules (controller modules)
  • Up to STM-1/4/16 (OC-3/12/48) aggregate lines with software configuration (CCPA)
• Tributary modules: 8 tributary slots
  • Two ports STM-1/4 (OC-3/12) or One port STM-4 (OC-12) module
  • Three ports E3/T3 module
  • 16/32/63 ports E1/T1 tributary module
  • 1 GbE or 8 FE tributary module without L2 switch
  • 8 GbE with L2 switch tributary module
  • Three 10G/Eight 1G ports PTN10G module
• Power Modules
  • DC module (-36 to -72 Vdc)
  • AC/DC hybrid module (90 to 240 Vac; -36 to -72 Vdc)
  • Dual power (1+ 1) protection
• Protection
  • Controller cross-connect unit (CC16) protection,
  • MSP (1+1), SNCP/UPSR Ring
  • Controller cross-connect unit (CC4) protection,
  • MSP (1+1), SNCP/UPSR
• Tributary protection
  • E1/T1: Card/Port (1:1) using Y-box, Line (1+1)
  • E3/T3: Line (1+1)
  • B155/622: MSP, SNCP/UPSR
  • Ethernet
  • FOM: Line (1+1)
  • 8GE: Card
  • PTN Swtich Fabric 1:1
• Network Protection
• MSP 1+1
• SNCP/UPSR
• Ethernet Ring Protection (ERPS G.8032)
• Link Aggregation (Inter and Intra board)
• LSP Linear Protection (1+1/1:1) sub 50ms
  • External/Internal/Line timing source with SSM
• SyncE
• IEEE 1588
• TDM clocks
  • TM, ADM, and cross-connect
  • Full cross-connect at VC11/VC12/VC3/VC4 levels
  • External/Internal/Line timing source with SSM
  • Ethernet supports GFP, LAPS, VCAT, BCP, LCAS and non-LCAS
• Management
  • Console port, VT100 menu-driven
  • SNMP port: Both v1 and v3 supported
  • Telnet and SSH
  • Centralized management with Loop’s EMS/iNMS over DCC channel
  • Loop-iNET GUI Element Management System
  • TMN management (Loop-iNMS) with full FCAPS and end-to-end circuit management
• RoHS compliant
